Secure Web Gateway

Secure Web Gateway (SWG) is an optional add-on to Coro Network. From the SWG screen, admin users can activate domain name system (DNS) filtering and create allowlists and blocklists. DNS filtering allows admin users to restrict or allow access to specific domains, as well as groups or categories of domains. For example, an admin user may block access to suspected malware sites, or enforce company policy by blocking access to gambling sites or social networks.

To access SWG:

1. Log into the Coro console and select Control Panel from the toolbar:



2. Select Network :

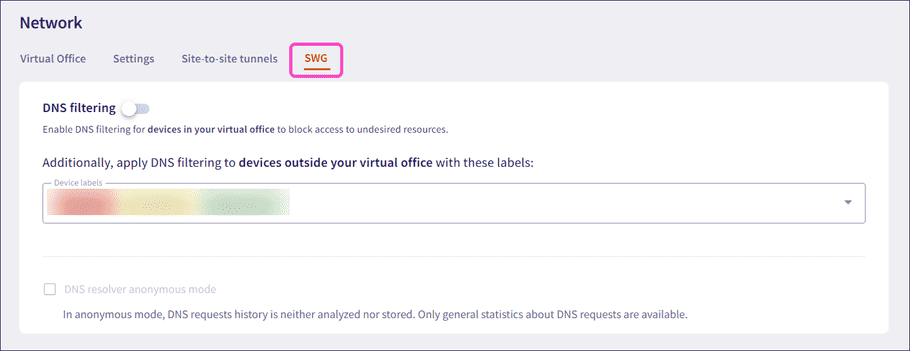

3. Select the SWG tab:



   SWG is displayed.

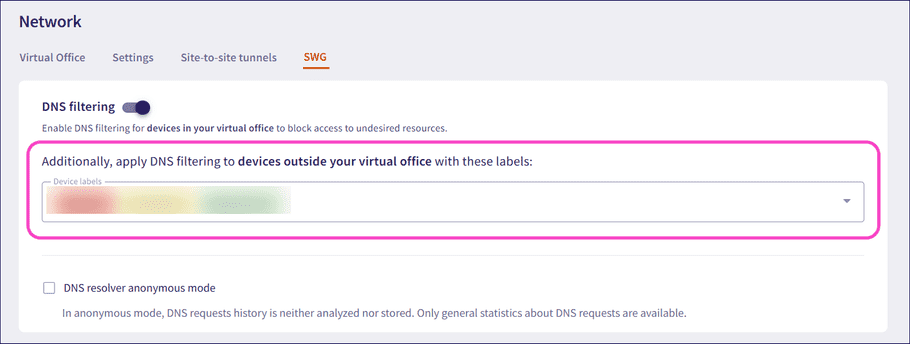

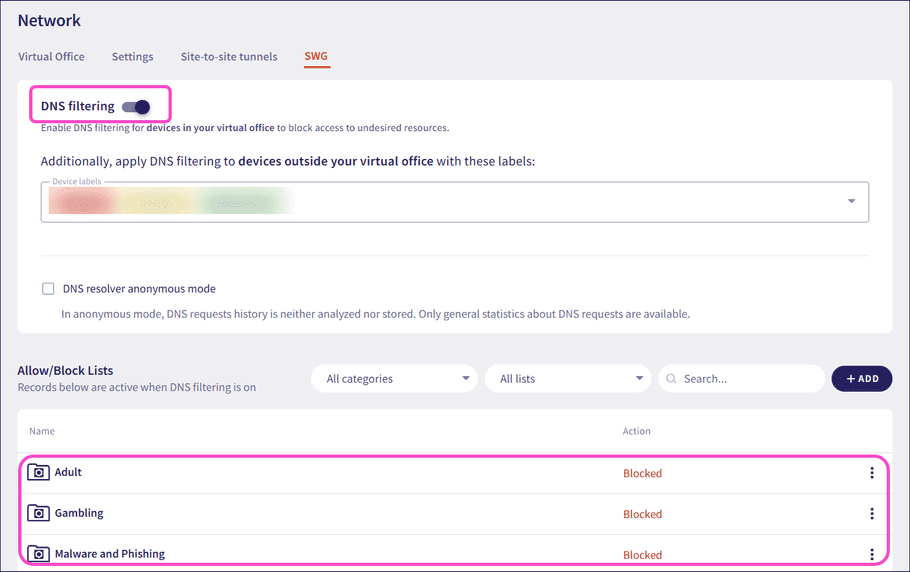

In the DNS filtering section, admin users can enable or disable DNS filtering. By default, DNS filtering is disabled. When an admin user enables DNS filtering for the first time, a predefined inactive set of external blocklists are added to the Allow/Block Lists section. Admin users can view and enable these lists.

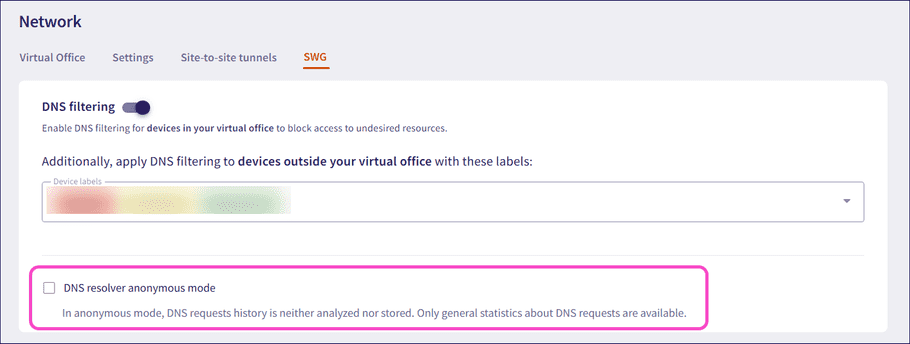

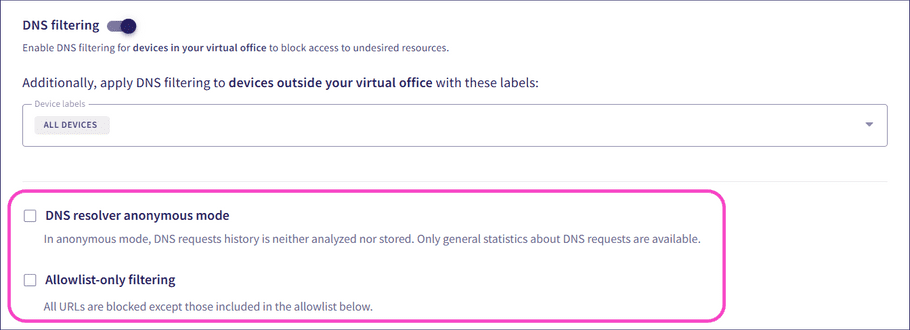

When filtering is enabled, admin users can turn on DNS resolver anonymous mode, which offers privacy to users by not tracking individual data. The DNS request history is neither analyzed nor stored when this option is enabled.

Below the DNS filtering section are the allowlists and blocklists. Admin users can add URLs, IP ranges, subnets, and wildcards to lists by entering them manually or uploading them in a text file. When uploading in a text file, Coro recommends using our template to avoid invalid entries.

• Add URLs which should be allowed to the allowlist
• Add URLs which should be blocked to the blocklist

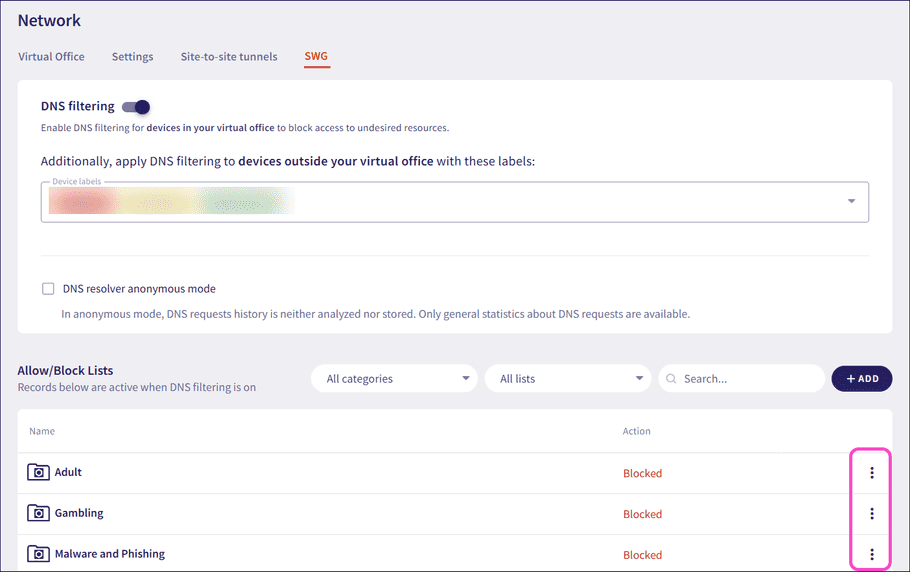

Allowlists and blocklists can be viewed, deleted, disabled, and enabled. When a list is disabled, it appears grayed out.
