Whereas [this link](#configuring-coro-network) jumps to a heading with the implicit anchor.Configuring a site-to-site VPN tunnel with Coro Network and Cisco Meraki
As part of a virtual office, Coro includes the ability for customers to configure VPNs together with site-to-site VPN tunnels.
This guide describes how to establish a site-to-site VPN tunnel between Coro and a Cisco Meraki appliance through the Cisco Meraki platform, and how to configure Coro to integrate with Cisco Meraki's firewall.
To configure a Cisco Meraki site-to-site VPN tunnel, complete the following processes:
- Configure Cisco Meraki to allow traffic from inside and outside the network
- Configure Coro to integrate with Cisco Meraki's firewall
Prerequisites
Before you start, make sure you have the following:
- Access as an admin user to the Coro console for your workspace
- An active subscription (or trial) for the Coro Network module
- Access to the Cisco Meraki Dashboard
Configuring Cisco Meraki
Configure Cisco Meraki to allow traffic from inside and outside the network:
Important
The Cisco Meraki configuration method is the same whether Virtual MX (VMX) is hosted on Azure/AWS or is a physical device.
- Sign into your Cisco Meraki Dashboard.
-
Select
Network
:
-
Select your preferred VMX appliance:
-
Go to
Security & SD-WAN
>
Appliance status
:
-
Select
Uplink
and note the
PUBLIC IP
address value:
-
Go to
Security & SD-WAN
>
Addressing and VLANs
:
-
Under
Routing
, select the
LAN Config
table:
The Configure Single LAN dialog appears:
-
Note the
Subnet
value:
-
Go to
Security & SD-WAN
>
Firewall
:
-
For both
Inbound rules
and
Outbound rules
, make sure
Source
is set to
Any
for the
Allow
policy. Leave the
Deny
policy at their default values:
Important
If your setup requires changing these settings, ensure they do not block Coro's IP address.
-
Go to
Security & SD-WAN
>
Site-to-site VPN
:
-
Configure
Site-to-site VPN
and
VPN settings
options:
-
Type
: Select
Hub (Mesh)
:
-
Local networks
: Set
VPN mode
to "Enabled" for the
Main subnet
:
-
NAT Traversal
: Select
Automatic
:
- Remote VPN Participants : Leave as default.
- BGP & OSPF settings : Leave as default.
-
Type
: Select
Hub (Mesh)
:
-
Configure
Organization-wide settings
:
-
Select
Add a peer
:
A new row is added to the Non-Meraki VPN peers table:
-
Enter the following settings:
info
THIS STEP CONTAINS A CUSTOM ANCHOR!!
Source:
1. <a name="testid"></a>Enter the following settings:- Name : Enter a suitable peer connection name.
- IKE Version : Select "IKEv2".
-
IPSec Policies
: Select the
Default
link.
An IPsec policy configuration dialog appears:
-
In the
Phase 1
section, make sure your settings match the following:
Field Value Encryption Select "AES-256" Authentication Select "SHA256" Pseudo-random Function Select "SHA256" Diffie-Hellman group Select "14" Lifetime (seconds) Enter "28800" -
In the
Phase 2
section, make sure your settings match the following:
Field Value Encryption Select "AES-256" and "AES-128" Authentication Select "SHA256" and "SHA1" PFS group Select "Off" Lifetime (seconds) Enter "28800" -
To save your settings, select
Update
:
The IPSec Policies link now displays as Custom:
-
In the
Phase 1
section, make sure your settings match the following:
-
Public IP/Hostname
: Enter the Coro public IP address shown in the Coro console.
To retrieve the Coro public IP address:
- Sign into your Coro workspace .
-
Select
Control Panel
:
-
Select
Network
:
The Coro public IP address displays on the Virtual Office page:
- Local ID : Enter the public IP address of Cisco Meraki's VMX appliance retrieved here .
- Remote ID : Enter the Coro public IP address retrieved for Public IP/Hostname .
- Private subnets : Enter "10.8.0.0/16, 10.9.0.0/16".
- Preshared key : Enter a shared password (secret) or generate a new one .
- Availability : Select "All networks".
- Inbound firewall logging : Select Enable to allow for more granular control over network security and traffic management.
-
Site-to-site outbound firewall
: Make sure the policy is set to "Allow":
-
Select
Add a peer
:
-
Select
Save Changes
to save your settings:
Allow one to two minutes for your changes to take effect.
Configuring Coro Network
Configure Coro with details of your site-to-site tunnel and firewall:
- Sign into your Coro workspace .
-

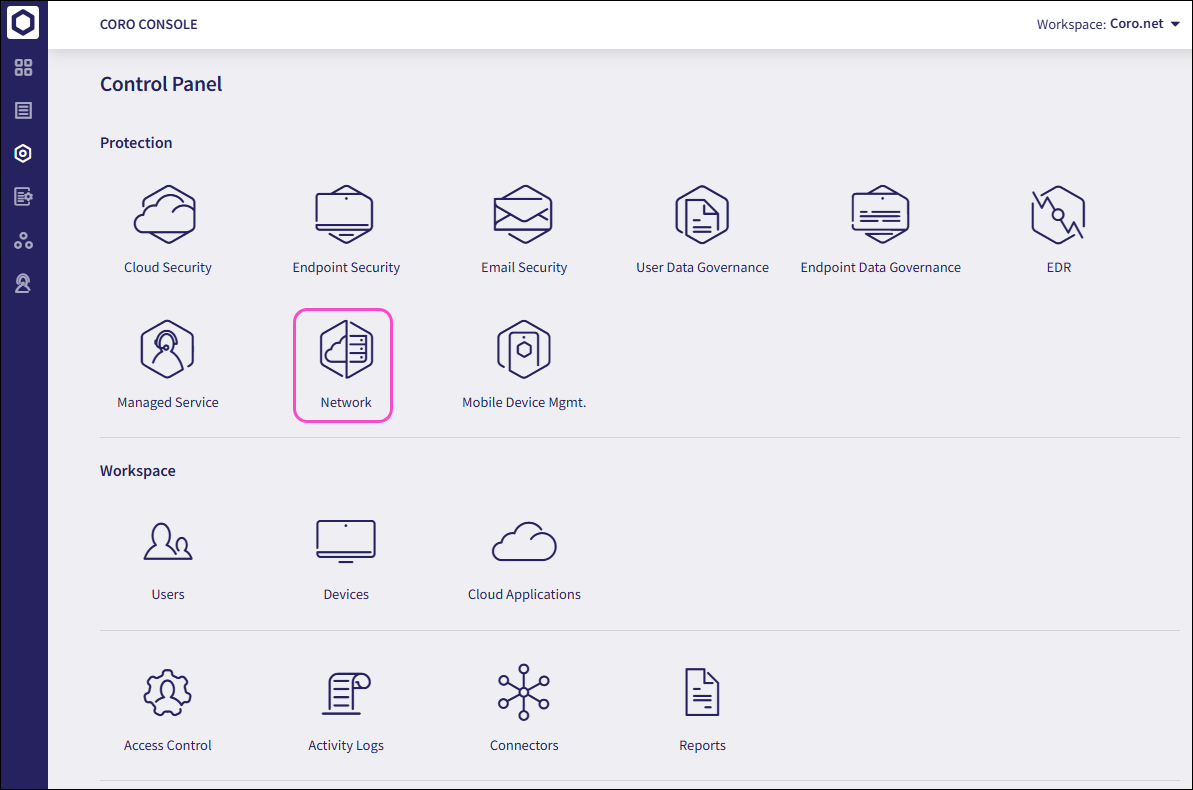

Select
Control Panel
:
-
Select
Network
:
-

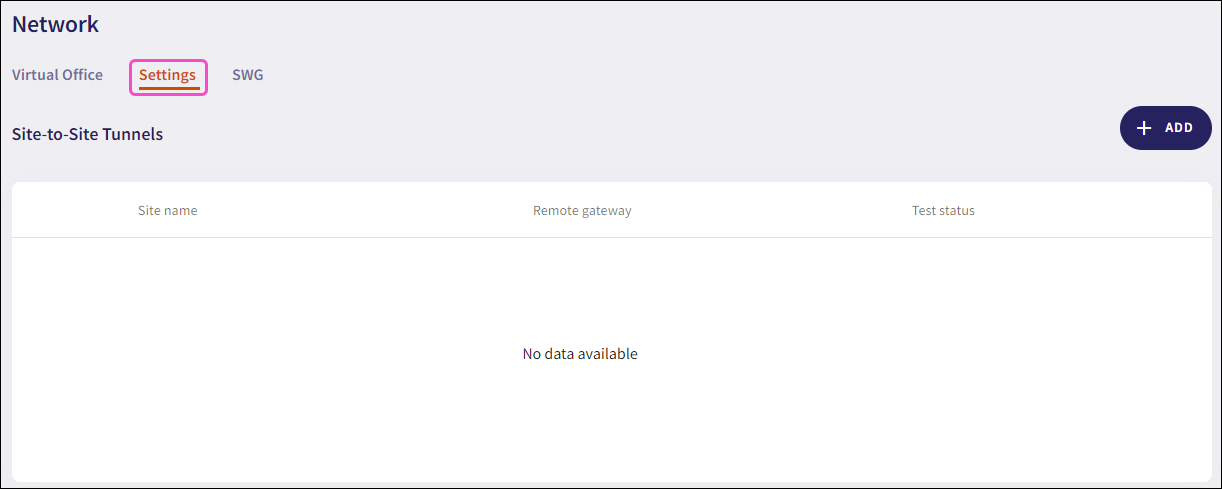

Select the
Settings
tab:
-
Select
+ ADD
to add a new site-to-site tunnel configuration:
-
Configure your
Site details
:
Field Value Site name Enter a suitable name for your site-to-site tunnel <br> Special characters and spaces are not supported Site description Enter a suitable short description for the tunnel <br> Special characters and spaces are not supported Remote gateway IP Enter Cisco Meraki's public IP address obtained here Remote network IP Enter Cisco Meraki's subnet obtained here Preshared key Enter the preshared key used here Lifetime key Enter "28800" -
In the same dialog, configure the
Firewall settings
:
Field Value Remote Network Mask Enter Cisco Meraki's subnet obtained here IKE Version Select "IKEv2" Phase 1 Encryption Select "AES256-SHA256-D14" Phase 2 Encryption Select "AES256-SHA256-D14" Aggressive Mode Select "No" - To save your configuration, select SAVE .
